Automatic Swing Door Opener BD

Veze Automatic Swing Door Operator with Pull Arm (SW100/SW200)

VEZE SW100/SW200 automatic swing door operator is 90-degree automatic swing door operator with a bearing load max.100kgs. With a deluxe and functional design, encoding technology, and multiple connection terminals for different access control devices, it is much superior in smooth and stable operation than the traditional models.

VEZE SW100 automatic swing door operator functional characteristics:

Double-door synchronous function: With double-door Synchronizer, double doors(master door and slave door) could open and close synchronously. When double opening, open first and close second is the master door, close first and open second is the slave door, master door turn K2 down, and slave door turn K2 up.  When the double-door synchronous function is chosen, sensors and the access control system are connected to the master door controller.

Push and go function: No need to push with force, turn K3 up to choose this function.

Safety anti-clip function: The door will go backward when people or moving obstacles approach while closing, which prevents the clamp injury or damage of the door itself

Low power consumption: Advanced brushless motor and gear reducer are integrated in the opener. With power consumption 50W, high efficiency, great torque and low noise, it is quite energy saving and has long lifespan.

Emergency backup battery(UPS):  Backup battery can be connected with power management terminal, which will support the door open and close 400 cycles when power failure or the fire broke out

One-key recovery function: The door expert set all parameters for you at any moment with one key recovery.

It is designed to meet various market demands for dependability, low noise, and application flexibility, and
suitable for washing room, security door, office door, hospital door, apartment door, etc.

Multiple access control devices(optional):
A. Sensors: Microwave sensor, Infrared sensor, foot sensor, hand sensor, safety beam sensor
B. Password: Password or fingerprint identification access
C. Card: IC card, RFIC card
D.Button switch: Elbow touch, foot touch, and long-distance induction buttons
E: Lock: Manual bolt lock, Magnetic lock, Electronic bolt lock


Working procedures of automatic swing door opener(SW100):
Activated by the signals from external control device?unlock?open?buffer action&stop?hold open?close?buffer action&stop?lock

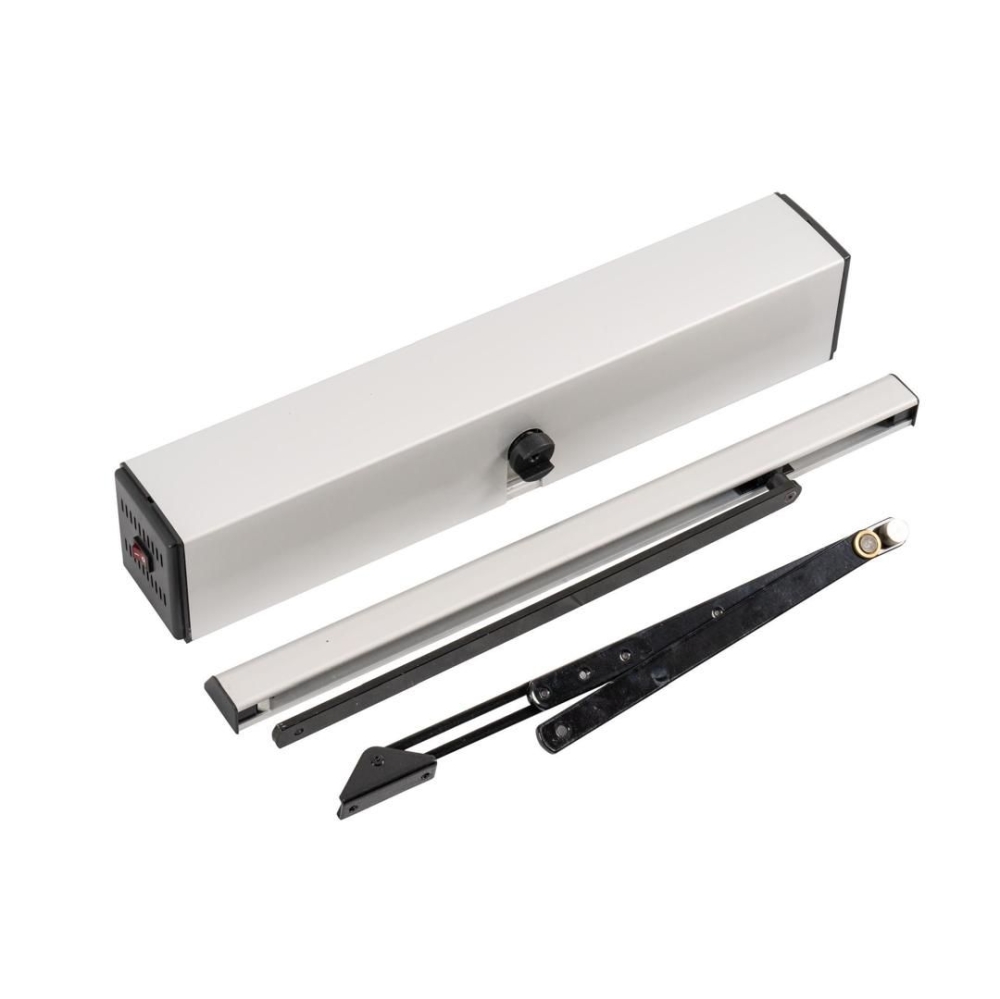

Picture of veze automatic swing door operator(SW100)


The comparison between automatic sliding doors and automatic swing doors:
At present, automatic sliding door has the highest utilization rate, it can be used for various entrances, but the whole system must be specially made as per actual need, and it has certain requirements and restrictions on the installation environment. Automatic swing door opens in the same way as what we use daily, and it can be installed on the basis of the existing manually opened swing door, no need to make more changes to retrofit and upgrade itself, especially the top-mounted swing door mechanism with the advantage of easy construction. So, it is convenient to install automatic swing door for either a new construction project or a renovation project. Due to the high requirements for manufacturing process and technical expertise, there are relatively fewer optional brands.

VEZE SW100 automatic swing door operator has passed CE and ISO. The swing door opener shall pass 2 million-cycle durability tests to ensure its excellent safety and reliability.  And it has 1 year quality guarantee. During the warranty period, we'll replace the problem items with new ones for free
